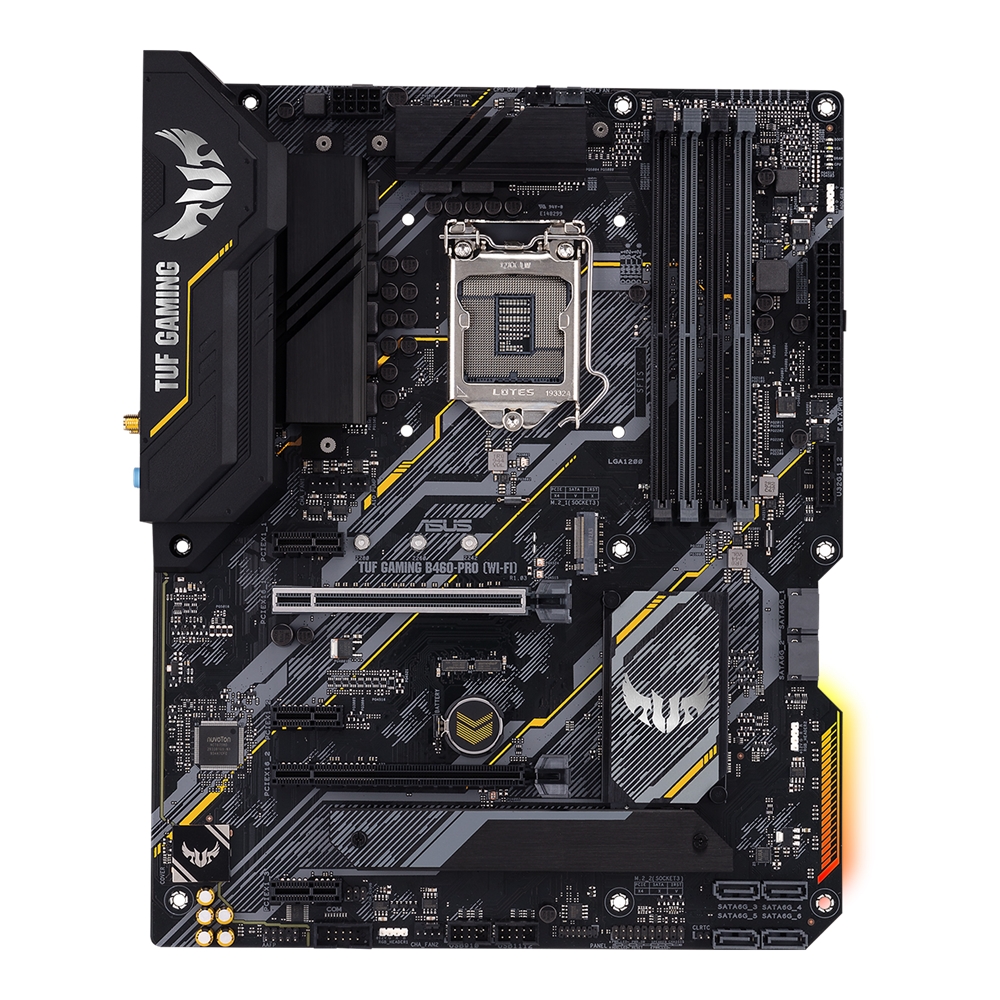

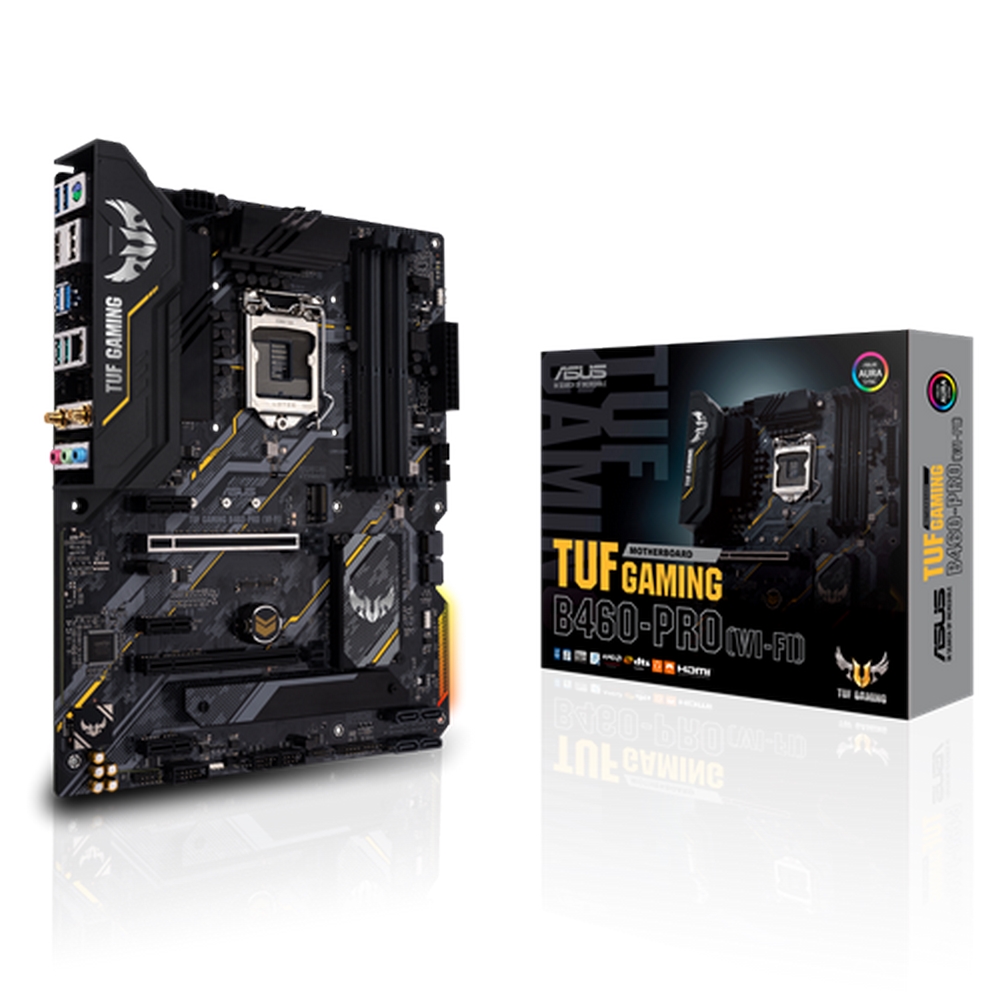

مادربرد ایسوس مدل (TUF GAMING B460-PRO (WI-FI

Intel® Socket 1200 for 10^th Gen Intel^® Core^™, Pentium^® Gold and Celeron^® Processors *

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list

**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Intel® B460

4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem

* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Integrated Graphics Processor

1  x DisplayPort 1.4 **

1  x HDMI 1.4b

*Graphics specifications may vary between CPU types.

**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.

Supports AMD 2-Way CrossFireX Technology

Intel® 10th Gen Processors

1 x PCIe 3.0 x16 (x16 mode)

Intel® B460 Chipset

1 x PCIe 3.0 x16 (x4 mode) *¹

3 x PCIe 3.0 x1 *¹

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

Intel® B460 Chipset :

1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*²

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s port(s)

Support Raid 0, 1, 5, 10

Intel® Rapid Storage Technology supports

Intel® Optane™ Memory Ready *³

Intel® Wi-Fi 6 AX200

2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO

Supports up to 2.4Gbps max data rate

Supports dual band frequency 2.4/5 GHz

Supports channel bandwidth: HT20/HT40/HT80/HT160

Supports PCIe interface

Bluetooth v5.1*

*BT 5.1 function will be ready in Windows 10 build 19041 or later.

Realtek ALC S1200A 8-Channel High Definition Audio CODEC *

– Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

Audio Feature :

– Exclusive DTS Custom for GAMING Headsets.

– Audio cover

– Audio Shielding

– Dedicated audio PCB layers

– Premium Japanese audio capacitors

* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

Rear USB Port ( Total 6  )

2 x USB 3.2 Gen 2 port(s)(2 x Type-A)

4 x USB 3.2 Gen 1 port(s)(4 x Type-A)

Front USB Port ( Total 6  )

2 x USB 3.2 Gen 1 port(s)

4 x USB 2.0 port(s)

ASUS Exclusive Software

Armoury Crate

– Aura Sync

AI Suite 3

– Performance And Power Saving Utility

Digi+ VRM

EPU

Fan Xpert 4

– EZ update

– PC Cleaner

– System Information

AI Charger

ASUS Turbo LAN

DTS Custom for GAMING Headsets

Norton Anti-virus software (Free Trial for 60 days)

DAEMON Tools

Google Chrome Browser & Google Toolbar

TUF GAMING CPU-Z

WinRAR

UEFI BIOS

ASUS EZ DIY

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode

ASUS TUF PROTECTION

– ASUS DIGI+ VRM

– ASUS Enhanced DRAM Overcurrent Protection

– ASUS ESD Guards

– ASUS LANGuard

– ASUS Overvoltage Protection

– ASUS SafeSlot Core+

– ASUS Stainless-Steel Back I/O

ASUS Q-Design :

– ASUS Q-DIMM

– ASUS Q-Slot

– ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

ASUS Thermal Solution:

– Aluminum M.2 heatsink

– Aluminum heatsink design

ASUS EZ DIY

– Box Headers

AURA Sync

– Addressable Gen 2 RGB header

– Standard RGB headers

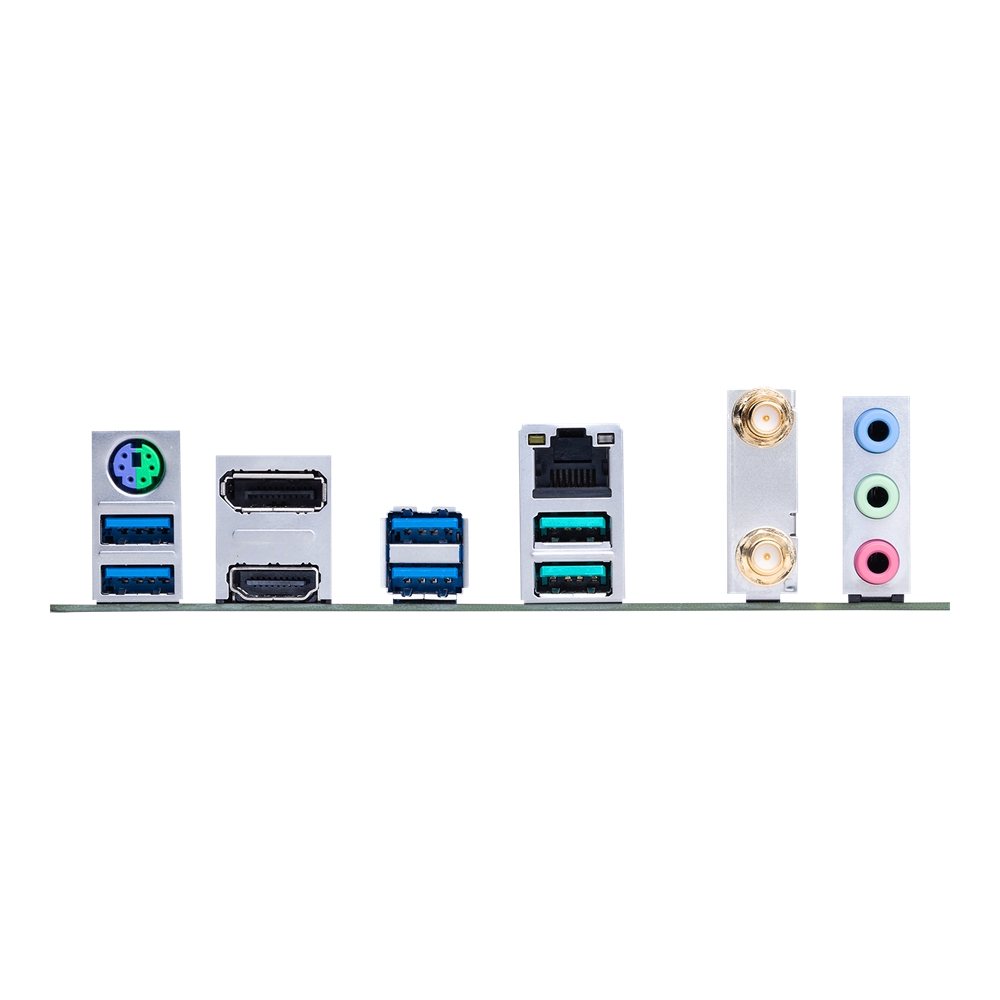

1 x PS/2 keyboard/mouse combo port(s)

1 x DisplayPort

1 x HDMI

1 x LAN (RJ45) port(s)

2 x USB 3.2 Gen 2 Type-A

4 x USB 3.2 Gen 1 Type-A

3 x Audio jack(s)

1 x ASUS Wi-Fi Module

1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

2 x Chassis Fan connector(s)

1 x AIO_PUMP connector

2 x Aura RGB Strip Headers

1 x Addressable Gen 2 header(s)

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s connector(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin EATX 12V Power connectors

1 x Front panel audio connector(s) (AAFP)

1 x Clear CMOS jumper(s)

1 x System panel connector

1 x COM port header

User´s manual

I/O Shield

2 x SATA 6Gb/s cable(s)

1 x Supporting DVD

1 x TUF Gaming Sticker

1 x TUF Certification card(s)

1 x Wi-Fi moving antenna

1 x M.2 SSD screw package(s)

1 x M.2 Rubber Package(s)

128 Mb Flash ROM, UEFI AMI BIOS

WOL by PME, PXE

Windows® 10 64-bit

ATX Form Factor

12  inch x 9.6  inch ( 30.5  cm x 24.4  cm )

*1 By default, the PCIe x16_2 slot is set to run in x4 mode and shares bandwidth with the PCIe x1_1, PCIe x1_2 or PCIe x3 slot. When a PCIe device is detected in any of the PCIe x1 slots, the PCIe x16_2 slot will run in x1 mode.

*2 M.2_1 shares bandwidth with SATA6G_1. When M.2_1 runs SATA mode, SATA6G_1 will be disabled.

*3 Only the M.2_2 socket can support Intel® Optane™ Memory Ready.

*4 NVME RAID is supported with M.2_2 and PCIe X16_1.PCIe x16_1´s device needs to use Intel brand.
