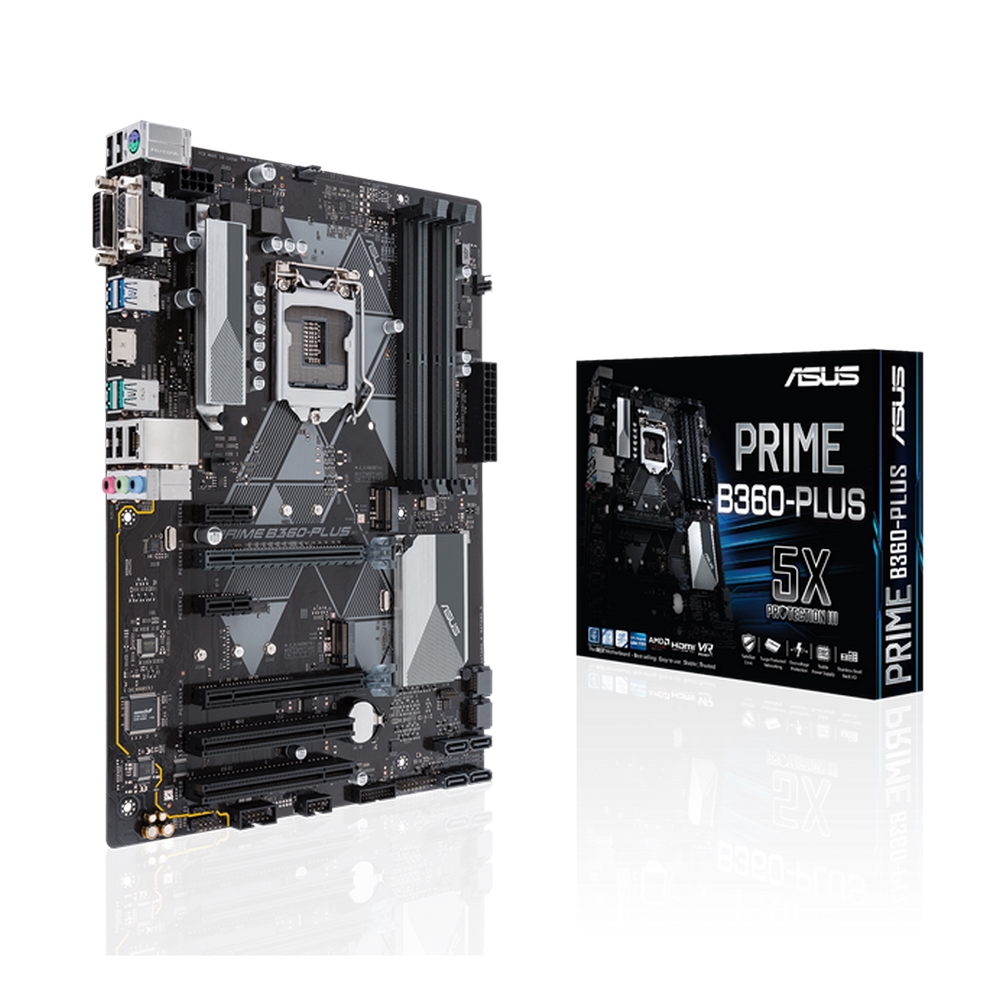

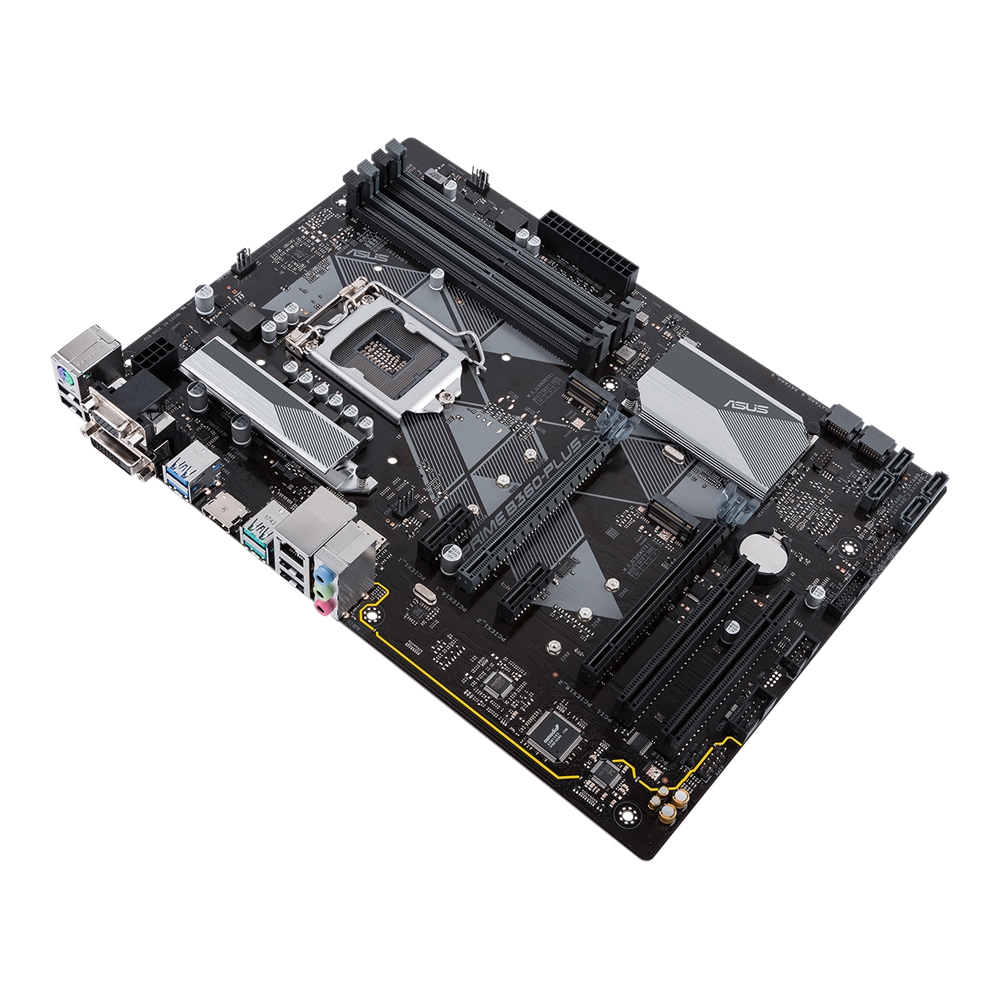

مادربرد ایسوس مدل PRIME B360-PLUS

Intel® Socket 1151 9th / 8th Gen Intel^® Core™, Pentium^® Gold and Celeron^® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0

* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

* Refer to www.asus.com for CPU support list

Intel® B360

4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory *

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

* The maximum memory frequency supported varies by processor.

** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.

Integrated Graphics Processor- Intel® HD Graphics support

Multi-VGA output support : HDMI/DVI-D/D-Sub ports

– Supports HDMI 1.4b with max. resolution 4096  x 2160  @ 24  Hz / 2560  x 1600  @ 60  Hz

– Supports DVI-D with max. resolution 1920  x 1200  @ 60 Hz

– Supports D-sub with max. resolution 1920  x 1200  @ 60  Hz

Maximum shared memory of 1024  MB (for iGPU exclusively)

Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Supports up to 3  displays simultaneously

Supports AMD CrossFireX™ Technology

1 x PCIe 3.0/2.0 x16 (x16 mode)

1 x PCIe 3.0/2.0 x16 (max at x4 mode) *¹

2 x PCIe 3.0/2.0 x1

2 x PCI

Intel® B360 Chipset :

1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)*²

1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s port(s), gray

Intel® Optane™ Memory Ready *³

Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

Realtek® ALC887 8-Channel High Definition Audio CODEC

– Supports : Jack-detection, Front Panel Jack-retasking

Audio Feature :

– LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path.

– Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

– Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

Intel® B360 Chipset :

2 x USB 3.1 Gen 2 up to 10Gbps port(s) (2 at back panel, teal blue, Type-A)

Intel® B360 Chipset :

4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)

Intel® B360 Chipset :

6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)

ASUS 5X Protection III :

– ASUS SafeSlot Core: Fortified PCIe Slot prevents damage

– ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!

– ASUS Overvoltage Protection: World-class circuit-protecting power design

– ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!

– ASUS DIGI+ VRM: Premium components provide better power efficiency

ASUS OptiMem：

– Optimem (Improved DDR4 stability)

ASUS EPU :

– EPU

ASUS Exclusive Features :

– AI Suite 3

– Ai Charger

– PC Cleaner

– File Transfer

ASUS Quiet Thermal Solution :

– Stylish Fanless Design Heat-sink solution & MOS Heatsink

– ASUS Fan Xpert 2+

ASUS EZ DIY :

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode

ASUS Q-Design :

– ASUS Q-Slot

– ASUS Q-DIMM

M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

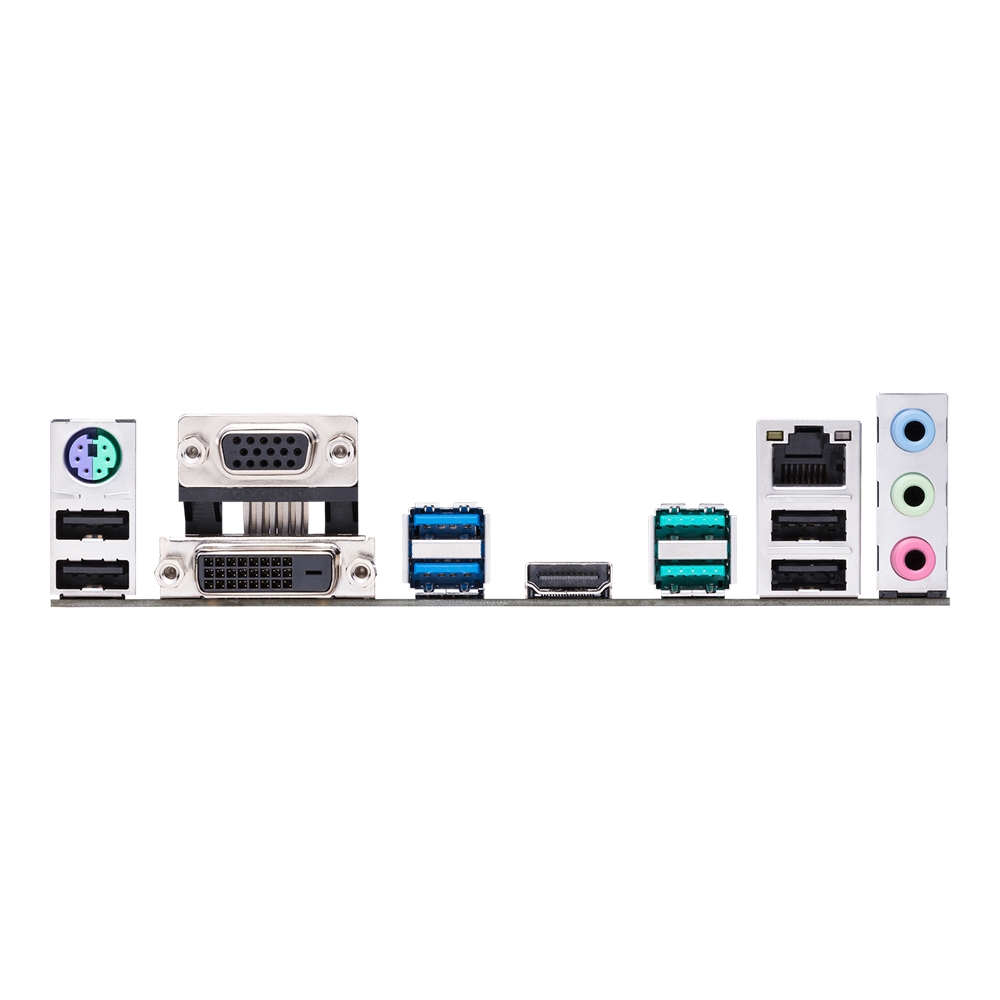

1 x PS/2 keyboard/mouse combo port(s)

1 x DVI-D

1 x D-Sub

1 x HDMI

1 x LAN (RJ45) port(s)

2 x USB 3.1 Gen 2 (teal blue)up to 10Gbps

2 x USB 3.1 Gen 1 (blue) up to 5Gbps

4 x USB 2.0

3 x Audio jack(s)

1 x CPU Fan connector(s) (1 x 4 -pin)

2 x Chassis Fan connector(s) (1 x 4 -pin)

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)

1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)

1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s connector(s)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s)

1 x Clear CMOS jumper(s)

1 x COM port header

User´s manual

I/O Shield

2 x SATA 6Gb/s cable(s)

2 x M.2 screws

1 x SCD (by region)

128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

WOL by PME, PXE

Drivers

ASUS Utilities

ASUS EZ Update

Anti-virus software (OEM version)

Windows® 10 64-bit

ATX Form Factor

12.0  inch x 8.7  inch ( 30.5  cm x 22.1  cm )

*1. The PCIe x1_1, PCIe x1_2 slots share bandwidth with PCIe x16_2. The PCIe x16_2 slot runs at x2 mode as default. Please check BIOS for more configuration.

*2. When a device in SATA mode is installed on the M.2_1 socket, SATA_2 port cannot be used.

*3. Only the M.2_2 socket can support Intel® Optane™ memory.
