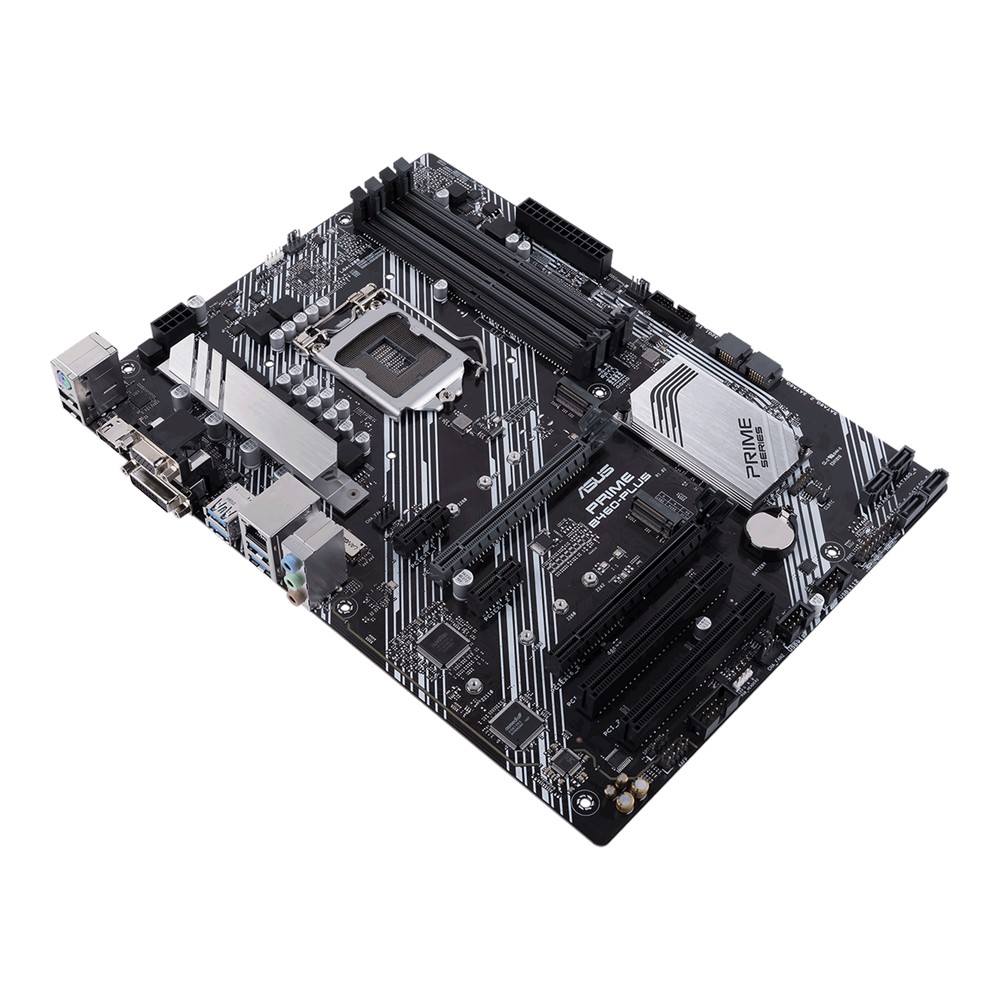

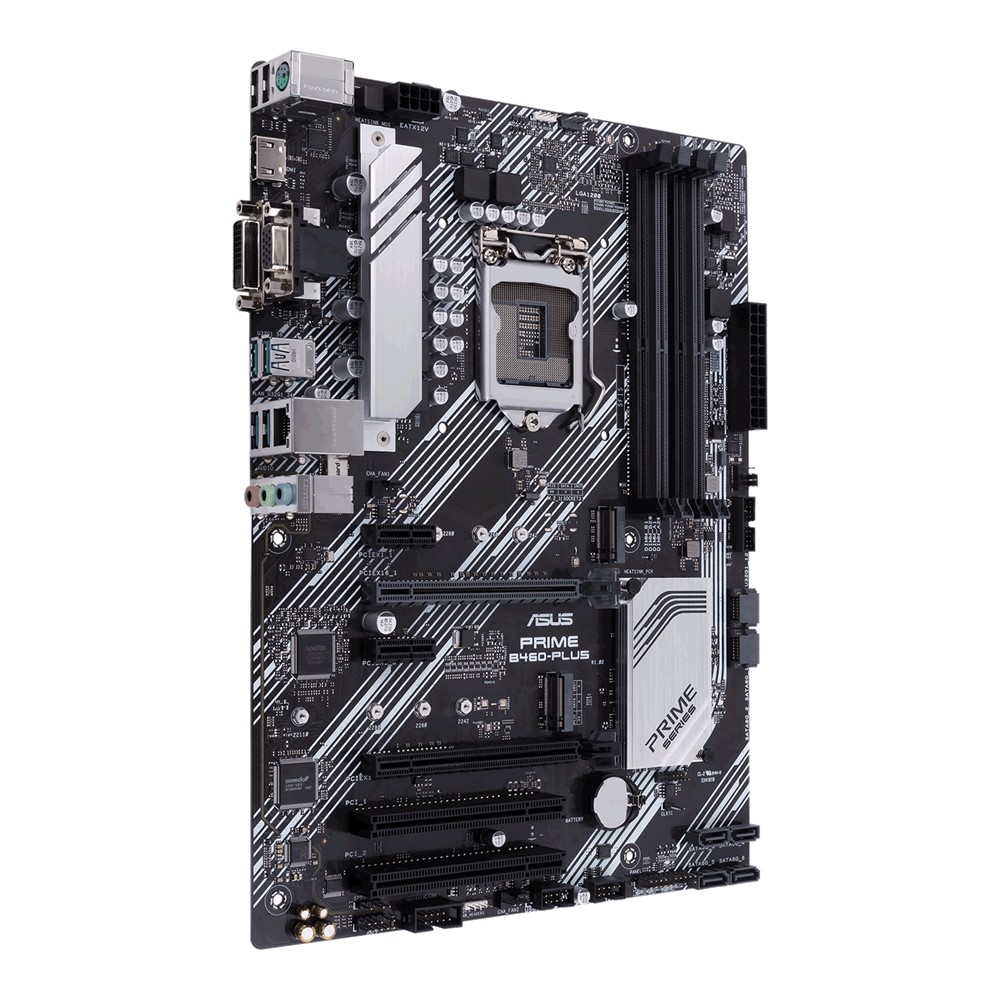

مادربرد ایسوس مدل PRIME B460-PLUS

Intel® Socket 1200 for 10^th Gen Intel^® Core^™, Pentium^® Gold and Celeron^® Processors *

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list

**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Intel® B460

Intel® B460 Chipset

4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem

* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Integrated Graphics Processor

1  x D-Sub

1  x HDMI 1.4b

1  x DVI-D 1.4

*Graphics specifications may vary between CPU types.

Supports AMD 2-Way CrossFireX Technology

Intel® 10th Gen Processors

1 x PCIe 3.0/2.0 x16 (x16 mode)

Intel® B460 Chipset

1 x PCIe 3.0/2.0 x16 (x4 mode)

2 x PCIe 3.0/2.0 x1

2 x PCI

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

Intel® B460 Chipset :

1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)

1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s port(s)

Support Raid 0, 1, 5, 10

Intel® Rapid Storage Technology supports

Intel® Optane™ Memory Ready

Realtek® RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard

Realtek ALC887 7.1-Channel High Definition Audio CODEC *

– Supports : Jack-detection, up to 24-Bit/192kHz playback

Audio Feature :

– LED-illuminated design

– Audio Shielding

– Dedicated audio PCB layers

– Premium Japanese audio capacitors

* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

Rear USB Port ( Total 6  )

4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A)

2 x USB 2.0 port(s)(2 x Type-A)

Front USB Port ( Total 6  )

2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)

4 x USB 2.0 port(s)

ASUS Exclusive Software

Armoury Crate

AI Suite 3

– Performance And Power Saving Utility

TurboV EVO

EPU

Digi+ VRM

Fan Xpert 2+

– EZ update

AI Charger

ASUS CPU-Z

DAEMON Tools

Norton Anti-virus software(Free Trial for 60 days)

WinRAR

UEFI BIOS

ASUS EZ DIY

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode

ASUS 5X PROTECTION III

– ASUS DIGI+ VRM

– ASUS LANGuard

– ASUS Overvoltage Protection

– ASUS Safeslot core

– ASUS Stainless-Steel Back I/O

ASUS Q-Design

– ASUS Q-DIMM

– ASUS Q-Slot

ASUS Lighting Control

– Standard RGB headers

1 x PS/2 keyboard/mouse combo port(s)

1 x DVI-D

1 x D-Sub

1 x HDMI

1 x LAN (RJ45) port(s)

4 x USB 3.2 Gen 1 Type-A

2 x USB 2.0

3 x Audio jack(s)

1 x CPU Fan connector(s) (1 x 4 -pin)

3 x Chassis Fan connector(s) (3 x 4 -pin)

1 x AAFP connector

2 x Lighting Control RGB Strip Header(s)

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)

1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s connector(s)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x System panel(s) (Chassis intrusion header is inbuilt)

1 x Clear CMOS jumper(s)

1 x COM port header

User´s manual

I/O Shield

2 x SATA 6Gb/s cable(s)

1 x M.2 Screw Package

1 x Supporting DVD

128 Mb Flash ROM, UEFI AMI BIOS

WOL by PME, PXE

Windows® 10 64-bit

ATX Form Factor

12  inch x 9.0  inch ( 30.5  cm x 22.86  cm )

*M.2_1 shares bandwidth with SATA6G_1. When M.2_1 runs SATA mode, SATA6G_1 will be disabled.

2.NVME RAID is supported with M.2_2 and PCIEX16_1.PCIe x16_1´s device needs to use Intel brand.
