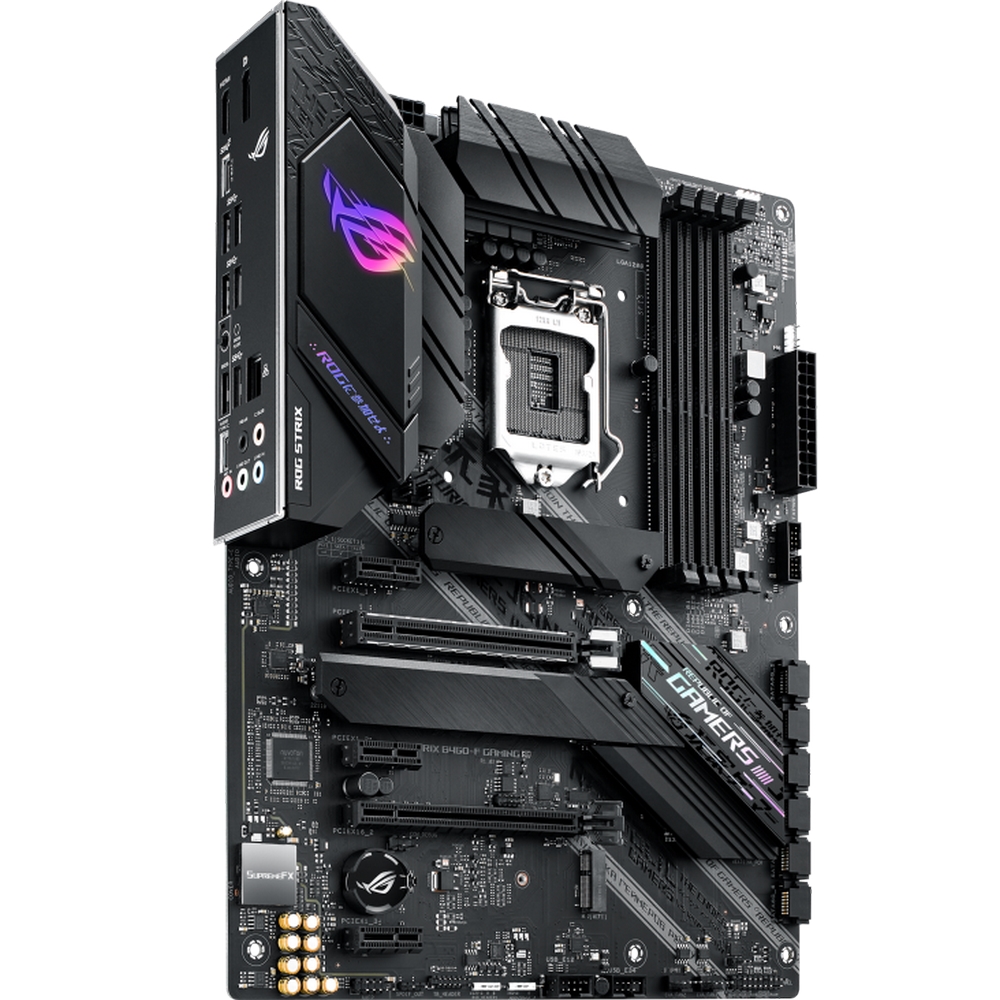

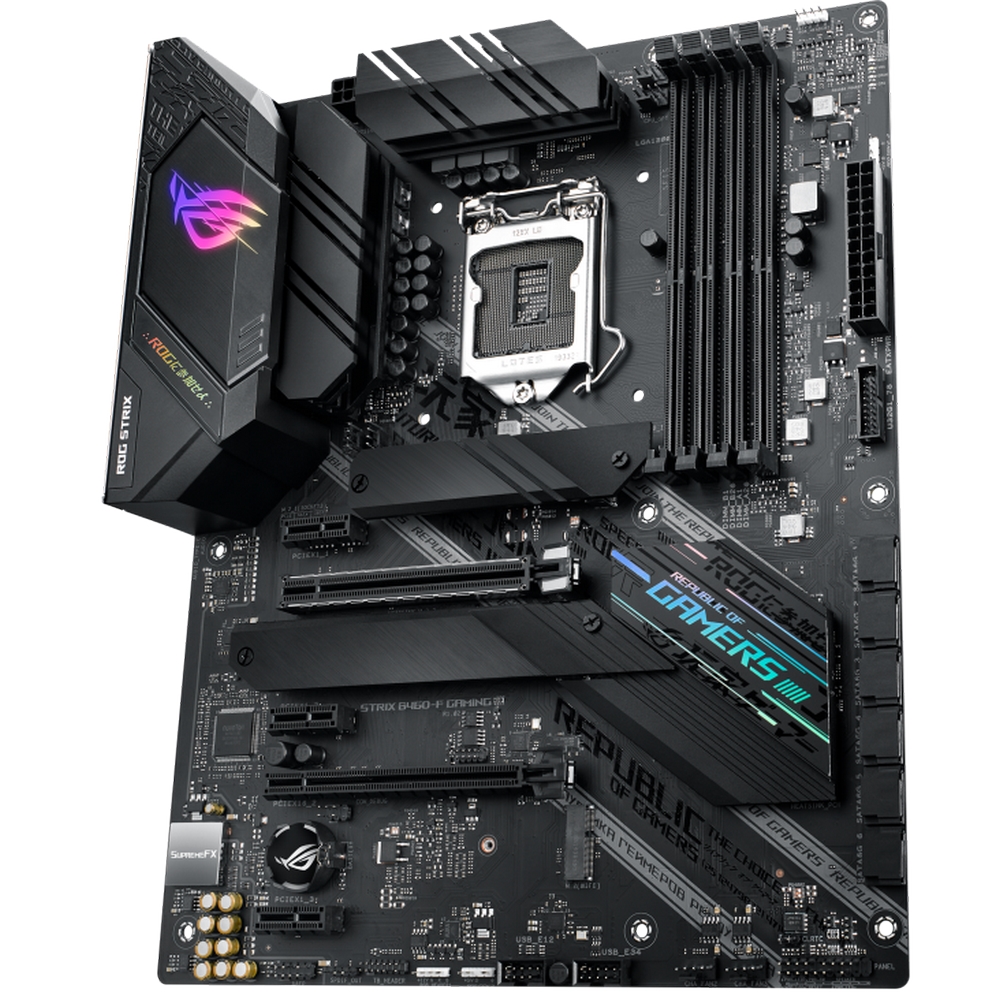

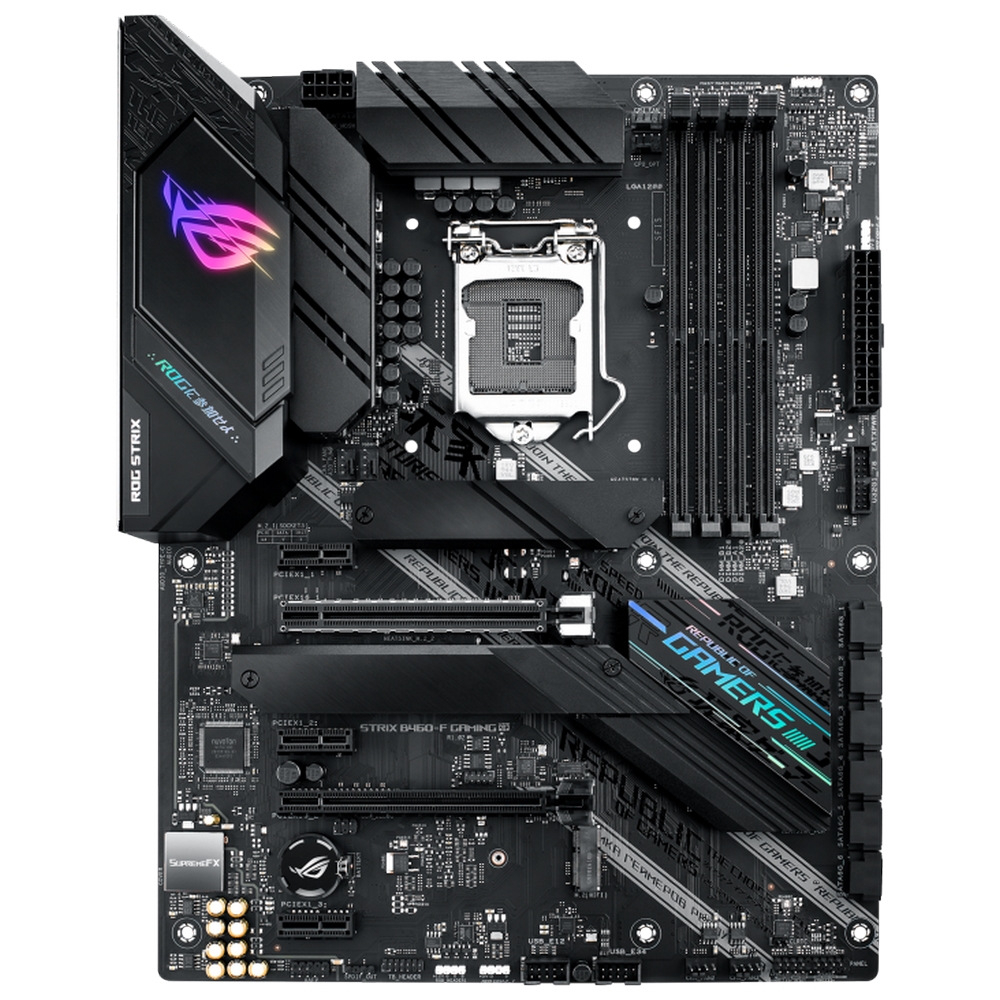

مادربرد ایسوس مدل ROG STRIX B460-F GAMING

CPU

Intel® Socket 1200for 10^th Gen Intel^® Core^™, Pentium^® Gold and Celeron^® Processors

Supports Intel® 14nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list

**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® B460

Memory

4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem

* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphic

Integrated Graphics Processor

1 x DisplayPort 1.4 **

1 x HDMI 1.4b

*Graphics specifications may vary between CPU types.

**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.

Multi-GPU Support

Supports AMD 2-Way CrossFireX Technology

Expansion Slots

Intel® 10th Gen Processors

1 x PCIe 3.0 x16

Intel® B460 Chipset

1 x PCIe 3.0 x16 (x4 mode) *¹

3 x PCIe 3.0 x1 *²

Storage

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

Intel® B460 Chipset :

1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*³

1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s port(s)

Support Raid 0, 1, 5, 10

Intel® Optane™ Memory Ready

LAN

Intel® I219-V 1Gb Ethernet

ASUS LANGuard

Wireless Data Network

M.2 slot only (Key E) (Support PCIe interface)*

*Wi-Fi module is sold separately.

Audio

ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC

– Dual OP Amplifiers

– Impedance sense for front and rear headphone outputs

– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

– High quality120dBSNR stereo playback outputand113dBSNR recording input

– Supports up to 32-Bit/192kHz playback

Audio Feature :

– SupremeFX Shielding™ Technology

– Rear audio USB Type-C® port

– Premium Japanese audio capacitors

– Audio Cover

* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

USB Ports

Rear USB Port ( Total 8 )

1 x USB 3.2 Gen 2×2 port(s)(1 x USB Type-C^®)

6 x USB 3.2 Gen 1 port(s)(6 x Type-A)

1 x USB 2.0 port(s)(1 x audio USB Type-C^® )

Front USB Port ( Total 6 )

2 x USB 3.2 Gen 1 port(s)

4 x USB 2.0 port(s)

Software Features

[ROG Exclusive Software] – RAMCache III – ROG CPU-Z – GameFirst VI – Sonic Studio III + Sonic Studio Virtual Mixer – Sonic Radar III – DTS® Sound Unbound – Overwolf – Anti-virus software [ASUS Exclusive Software] Armoury Crate – Aura Creator – Aura Sync AI Suite 3 – Performance And Power Saving Utility: TurboV EVO, EPU, Digi+ VRM, Fan Xpert 4 – EZ update ASUS CPU-Z DAEMON Tools WinRAR [UEFI BIOS] ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode

ASUS Special Features

Extreme Engine Digi+ – 5K Black Metallic Capacitors ASUS Q-Design – ASUS Q-DIMM – ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – ASUS Q-Slot ASUS Thermal Solution – Aluminum M.2 heatsink ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – Procool – Pre-mounted I/O shield – SafeSlot AURA Sync – Standard RGB header(s) – Addressable Gen 2 RGB header(s) Rear audio USB Type-C® connector

Back I/O Ports

1 x Intel® I219-V 1Gb Ethernet

1 x DisplayPort

1 x HDMI

1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C^®)

6 x USB 3.2 Gen 1

1 x USB 2.0 (1 for audio USB Type-C^®)

5 x Audio jack(s)

1 x USB BIOS FlashBack^™ Button(s)

Internal I/O Ports

1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

3 x Chassis Fan connector(s)

1 x AIO_PUMP connector

1 x AAFP connector

2 x Aura RGB Strip Headers

2 x Addressable Gen 2 header(s)

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

2 x M.2 Socket 3

1 x M.2 with E key for Wi-Fi module

6 x SATA 6Gb/s connector(s)

1 x S/PDIF out header(s)

1 x Thunderbolt header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x Clear CMOS jumper(s)

1 x System panel connector

Accessories

User´s manual

4 x SATA 6Gb/s cable(s)

1 x pack of cable tie

1 x Supporting DVD

1 x ROG Strix stickers

1 x Extension cable for Addressable LED

1 x ROG Thank you card

1 x M.2 SSD screw package(s)

1 xM.2 Key E screw package(s)

1 x M.2 Rubber Package(s)

1 x ROG audio USB Type-C® cable

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Operating System

Windows® 10 64-bit

Form Factor

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Note

*1 The PCIEX16_2 shares bandwidth with the PCIEX1_1 and PCIEX1_3. When PCIEX16_2 runs x4 mode, PCIEX1_1 and PCIEX1_3 will be disabled. The PCIEX16_2 will run x2 mode when PCIEX1_1 or PCIEX1_3 is occupied. *2 The PCIEX1_1 and PCIEX1_3 share bandwidth with PCIEX16_2. The PCIEX1_2 shares bandwidth with M.2 slot (Key E). *3 When M.2_1 is operating in SATA mode, SATA6G_1 will be disabled.
