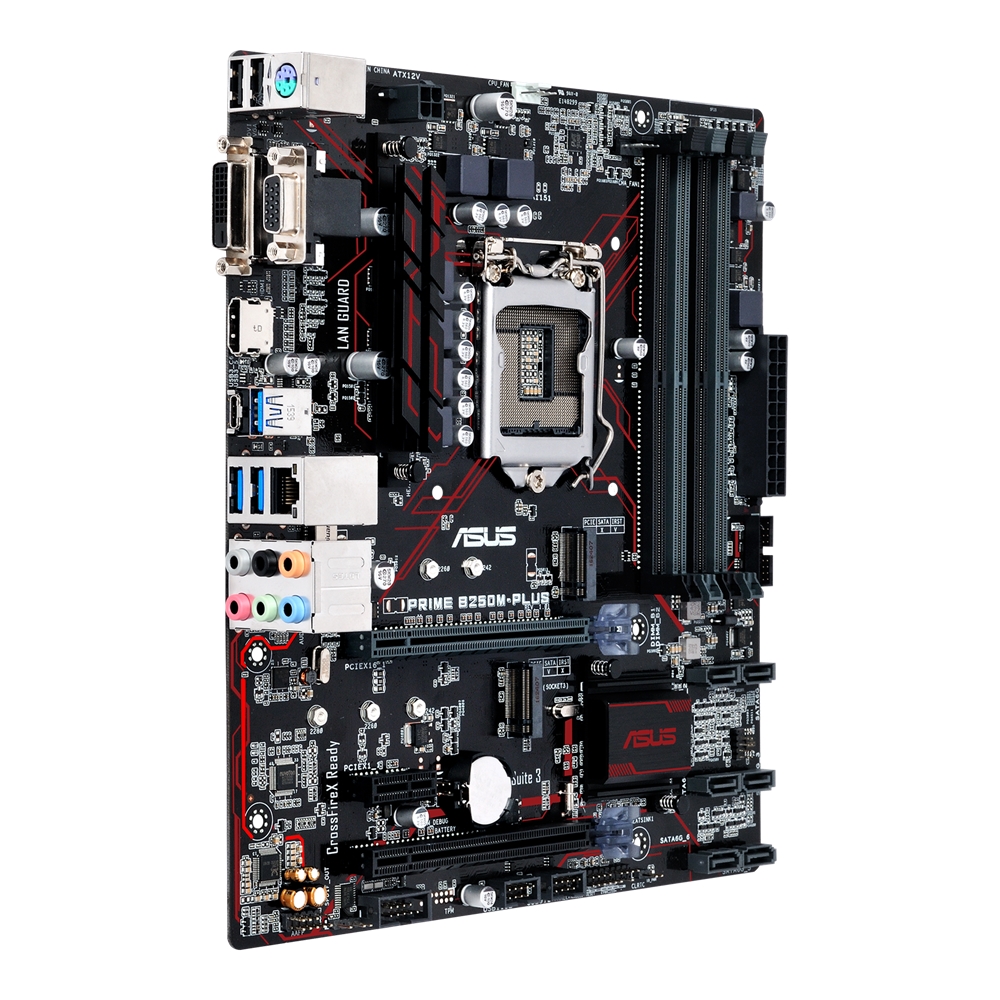

مادربرد ایسوس مدل PRIME B250M-PLUS

Intel® Socket 1151 for 7^th/6^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0

* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

* Refer to www.asus.com for CPU support list

Intel® B250

4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

* Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.

** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.

Integrated Graphics Processor- Intel® HD Graphics support

Multi-VGA output support : HDMI/DVI-D/RGB ports

– Supports HDMI with max. resolution 4096  x 2160  @ 24 Hz / 2560  x 1600  @ 60 Hz

– Supports DVI-D with max. resolution 1920  x 1200  @ 60 Hz

– Supports RGB with max. resolution 1920  x 1200  @ 60  Hz

Maximum shared memory of 1024  MB (for iGPU exclusively)

Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Supports up to 3  displays simultaneously

Supports AMD CrossFireX™ Technology

1 x PCIe 3.0/2.0 x16 (x16 mode, gray)

1 x PCIe 3.0/2.0 x16 (x4 mode, black)

1 x PCIe 3.0/2.0 x1

Intel® B250 Chipset :

1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)*¹

1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (x4 PCIE mode)*²

6 x SATA 6Gb/s port(s), gray

Intel® Optane™ Memory Ready *³

Intel® I219V, 1 x Gigabit LAN Controller(s)

ASUS LANGuard

Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY)

Realtek ALC887/897 8-Channel High Definition Audio CODEC

– Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback

Audio Feature :

– LED-illuminated design

– Audio Shielding

– Dedicated audio PCB layers

– Premium Japanese audio capacitors

Intel® B250 Chipset :

1 x USB 5Gb/s port(s) port(s) (1 at back panel, , USB Type-C^TM, Support 3A power output)

Intel® B250 Chipset :

5 x USB 3.1 Gen 1 port(s) (3 at back panel, blue, Type-A, 2 at mid-board)

Intel® B250 Chipset :

6 x USB 2.0/1.1 port(s) (2 at back panel, black, 4 at mid-board)

ASUS 5X Protection III :

– ASUS SafeSlot Core: Fortified PCIe Slot prevents damage

– ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!

– ASUS Overvoltage Protection: World-class circuit-protecting power design

– ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!

– ASUS DIGI+ VRM: 6  Phase digital power design

ASUS EPU :

– EPU

ASUS Exclusive Features :

– AI Suite 3

– Ai Charger

– ESD Guards

– ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface

ASUS Quiet Thermal Solution :

– Stylish Fanless Design Heat-sink solution & MOS Heatsink

– ASUS Fan Xpert 2+

ASUS EZ DIY :

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode

ASUS Q-Design :

– ASUS Q-Slot

– ASUS Q-DIMM

M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

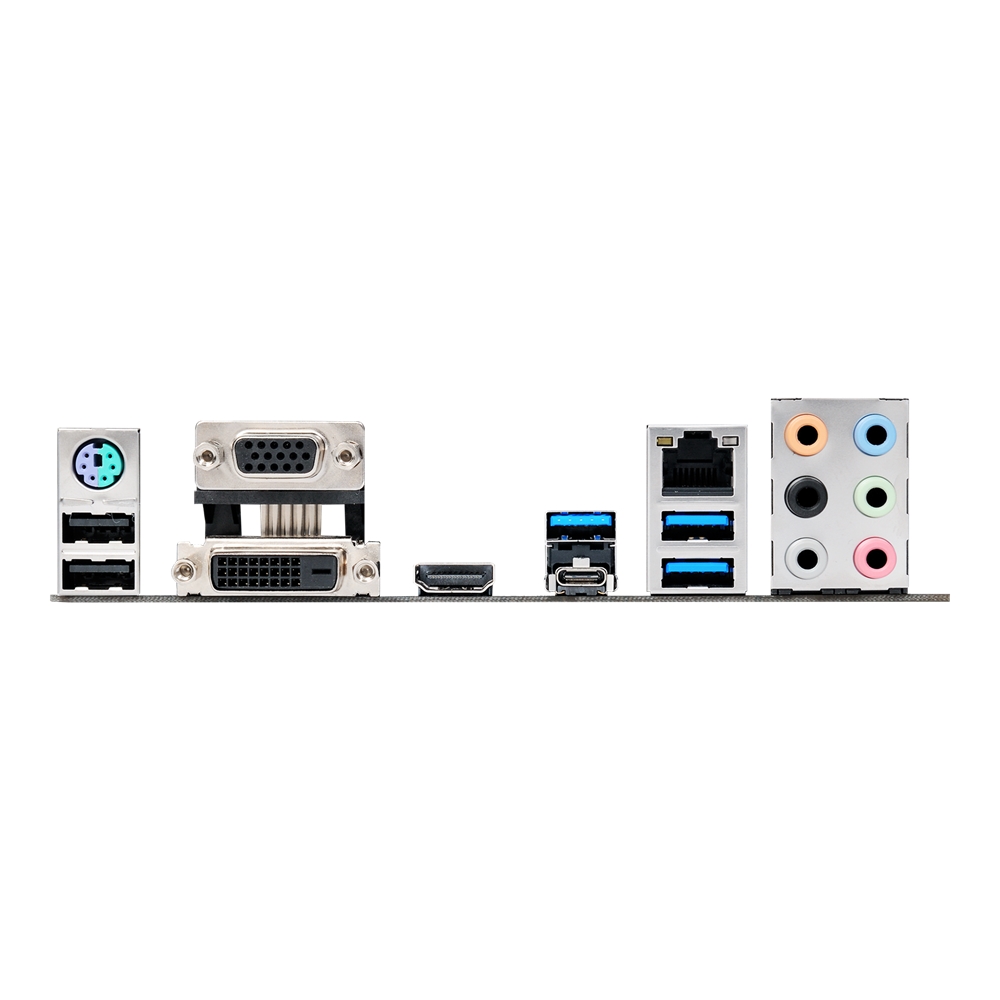

1 x PS/2 keyboard/mouse combo port(s)

1 x DVI-D

1 x D-Sub

1 x HDMI

1 x LAN (RJ45) port(s)

1 x 5Gb/s port(s) USB Type-C^TM ( support 3A power output )

3 x USB 3.2 Gen 1 (blue) Type-A

2 x USB 2.0

6 x Audio jack(s)

1 x CPU Fan connector(s) (1 x 4 -pin)

2 x Chassis Fan connector(s) (2 x 4 -pin)

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices

6 x SATA 6Gb/s connector(s)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 4-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x Clear CMOS jumper(s)

1 x System panel connector

1 x COM port header

User´s manual

I/O Shield

2 x SATA 6Gb/s cable(s)

2 x M.2 screws

1 x Supporting DVD

128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

WfM 2.0, DMI 3.0, WOL by PME, PXE

Drivers

ASUS Utilities

ASUS EZ Update

Anti-virus software (OEM version)

Windows® 10 64-bit

Windows® 8.1 64-bit *⁴

Windows® 7 32-bit *⁴

Windows® 7 64-bit *⁴

mATX Form Factor

9.6  inch x 8.8  inch ( 24.4  cm x 22.4  cm )

*1 When a device in SATA mode is installed on the M.2_1 socket, SATA_1 port cannot be used.

*2 Only M.2_2 socket can support Intel® Optane™ Memory.

*3 Intel® Optane™ Technology is only supported when using 7th Generation Intel® processors. Before using Intel® Optane™ memory modules,ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.

*4 Windows® 8.1 64-bit and Windows® 7 32 / 64-bit are only supported when using 6th Generation Intel® Processors
