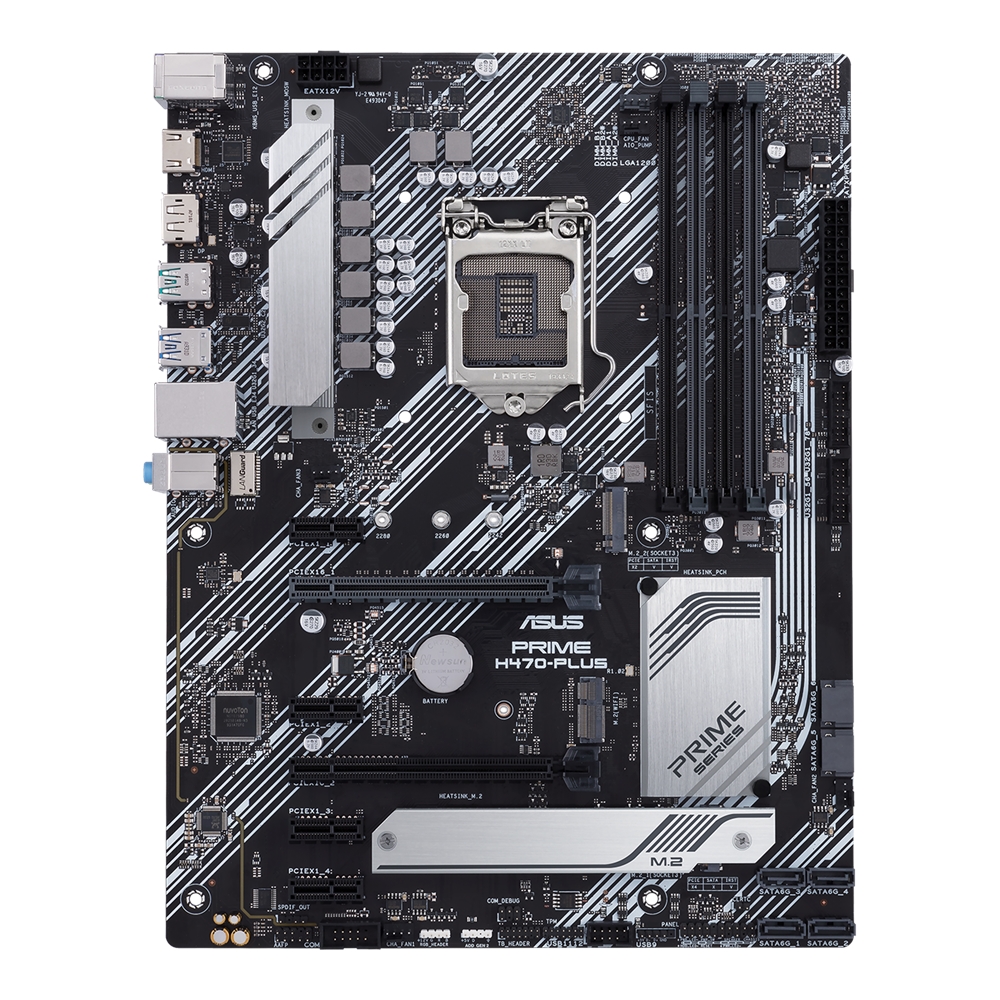

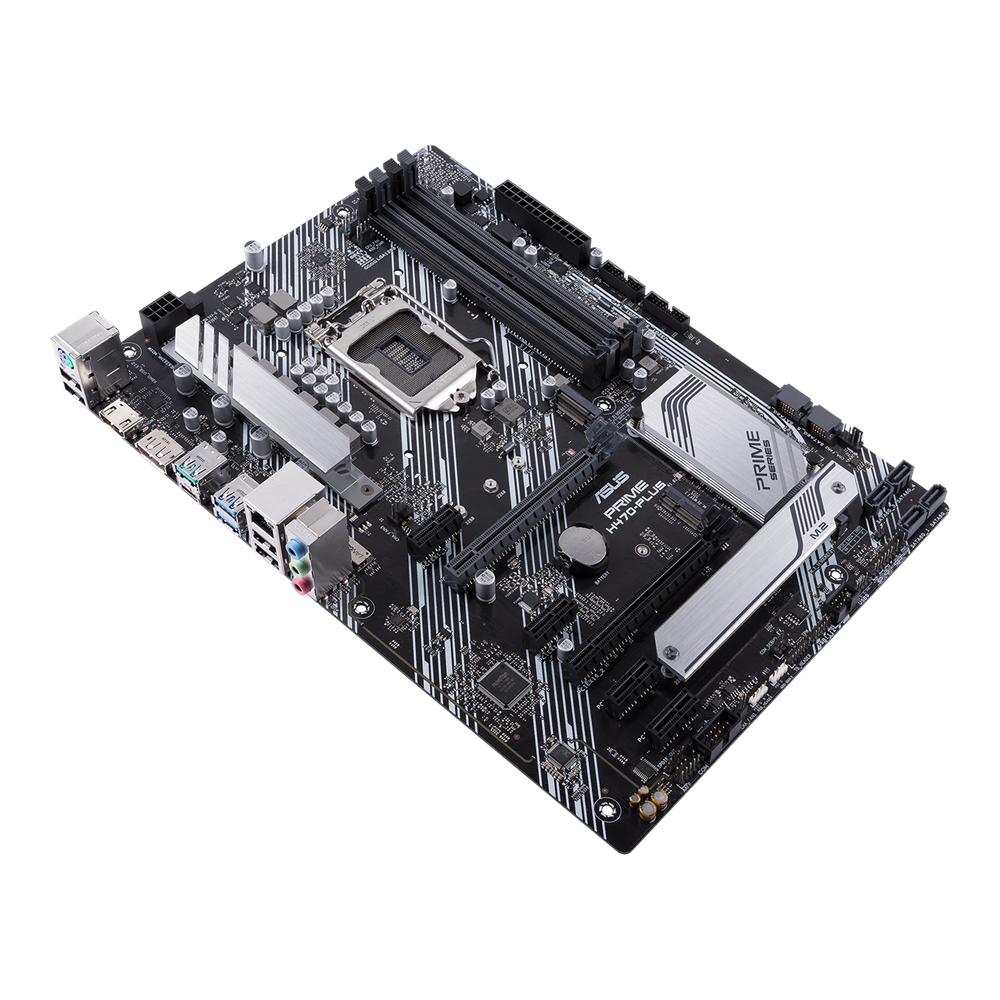

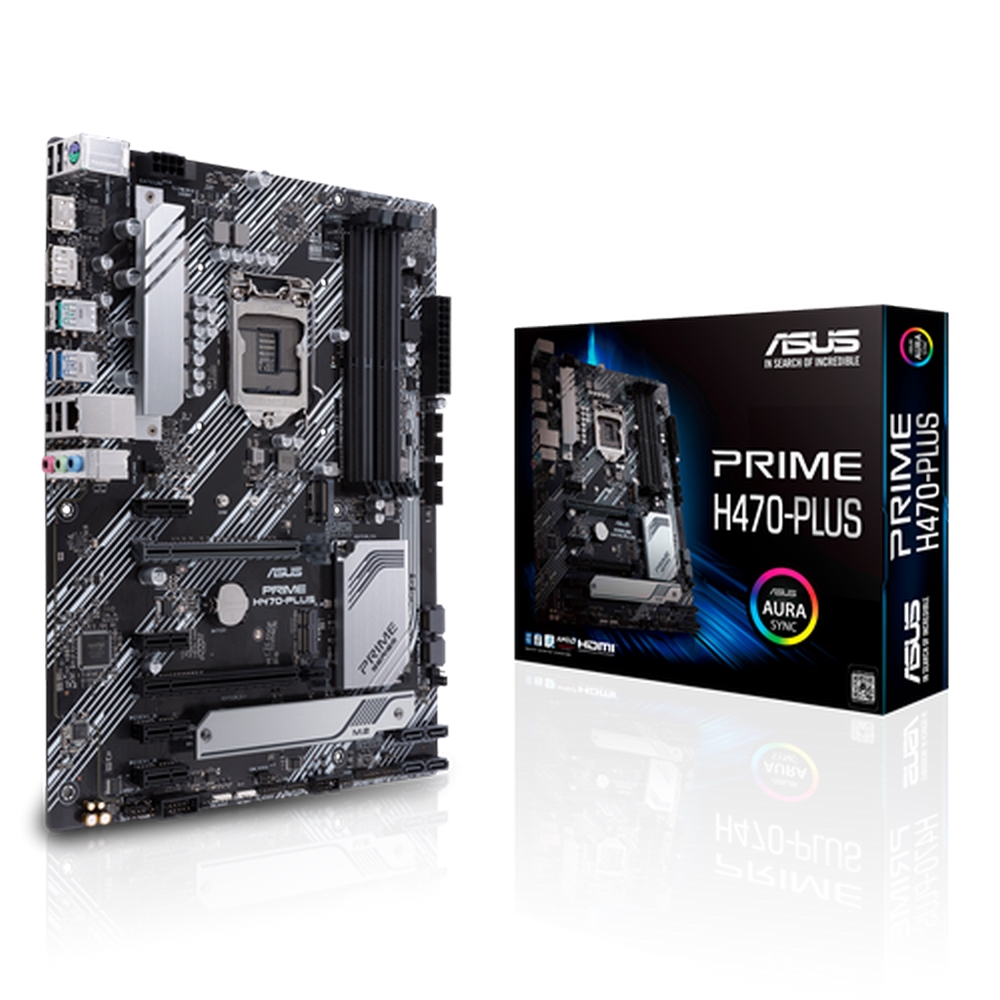

مادربرد ایسوس مدل PRIME H470-PLUS

Intel® Socket 1200 for 10^th Gen Intel^® Core^™, Pentium^® Gold and Celeron^® Processors *

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list

**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Intel® H470

4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem

* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Integrated Graphics Processor

1  x DisplayPort 1.4 **

1  x HDMI 1.4b

*Graphics specifications may vary between CPU types.

**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.

Supports AMD 2-Way CrossFireX Technology

Intel® 10th Gen Processors

1 x PCIe 3.0 x16 (x16 mode)

Intel^® H470 Chipset

1 x PCIe 3.0 x16 (x4 mode)

4 x PCIe 3.0 x1

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

Intel^® H470 Chipset :

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*¹

6 x SATA 6Gb/s port(s)

Support Raid 0, 1, 5, 10

Intel® Rapid Storage Technology supports

Intel® Optane™ Memory Ready

Realtek® RTL8111H

M.2 slot only (Key E) (Support CNVI & PCIe interface)*

*Wi-Fi module is sold separately.

Realtek® ALC887 8-Channel High Definition Audio CODEC *

– Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

Audio Feature :

– Audio Shielding

– Dedicated audio PCB layers

– Premium Japanese audio capacitors

* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

Rear USB Port ( Total 8  )

2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x Type-C)

2 x USB 3.2 Gen 1 port(s)(2 x Type-A)

4 x USB 2.0 port(s)(4 x Type-A)

Front USB Port ( Total 7  )

4 x USB 3.2 Gen 1 port(s)

3 x USB 2.0 port(s)

ASUS Exclusive Software

Armoury Crate

– Aura Sync

AI Suite 3

– Performance And Power Saving Utility

EPU

Digi+ VRM

Fan Xpert 2+

– EZ update

AI Charger

WinRAR

UEFI BIOS

ASUS EZ DIY

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode

ASUS 5X PROTECTION III

– ASUS DIGI+ VRM

– ASUS LANGuard

– ASUS Overvoltage Protection

– ASUS SafeSlot Core

– ASUS Stainless-Steel Back I/O

ASUS Q-Design

– ASUS Q-DIMM

– ASUS Q-Slot

ASUS Thermal Solution

– Aluminum M.2 heatsink

– Aluminum heatsink design

AURA Sync

– Standard RGB header

– Addressable Gen 2 RGB header

1 x PS/2 keyboard/mouse combo port(s)

1 x DisplayPort

1 x HDMI

1 x LAN (RJ45) port(s)

2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C^®)

2 x USB 3.2 Gen 1 Type-A

4 x USB 2.0 *²

3 x Audio jack(s)

1 x CPU Fan connector(s)

3 x Chassis Fan connector(s)

1 x AIO_PUMP connector

1 x Aura RGB Strip Headers

1 x Addressable Gen 2 header(s)

2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)

2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s)

1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)

1 x M.2 with E key for Wi-Fi module

1 x SPI TPM header

6 x SATA 6Gb/s connector(s)

1 x S/PDIF out header(s)

1 x Thunderbolt header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin EATX 12V Power connectors

1 x Front panel audio connector(s) (AAFP)

1 x Clear CMOS jumper(s)

1 x System panel connector

1 x COM port header

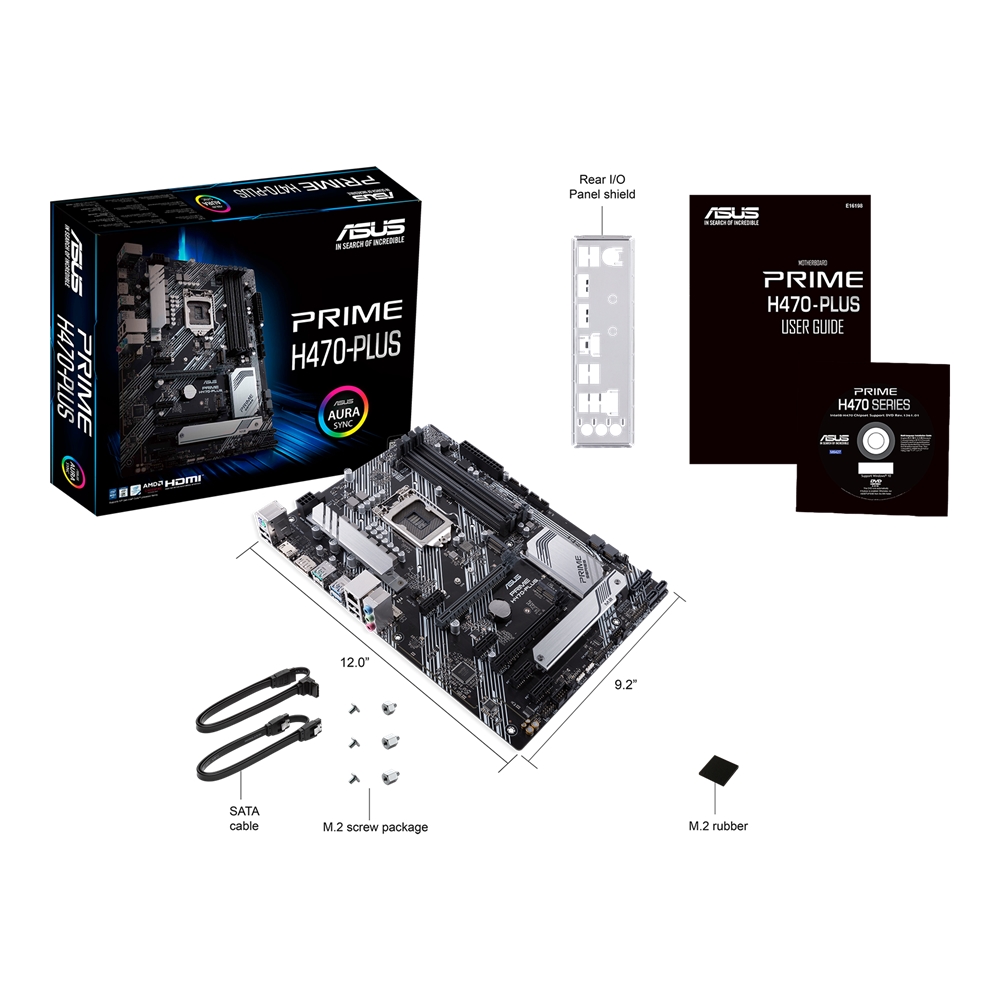

User´s manual

I/O Shield

2 x SATA 6Gb/s cable(s)

1 x Supporting DVD

1 x M.2 SSD screw package(s)

1 xM.2 Key E screw package(s)

1 x M.2 Rubber Package(s)

128 Mb Flash ROM, UEFI AMI BIOS

WOL by PME, PXE

Windows® 10 64-bit

ATX Form Factor

12  inch x 9.2  inch ( 30.5  cm x 23.4  cm )

*1 When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used.

*2 USB_E1, USB_E2, USB_E3 & USB_E4 share bandwidth.
