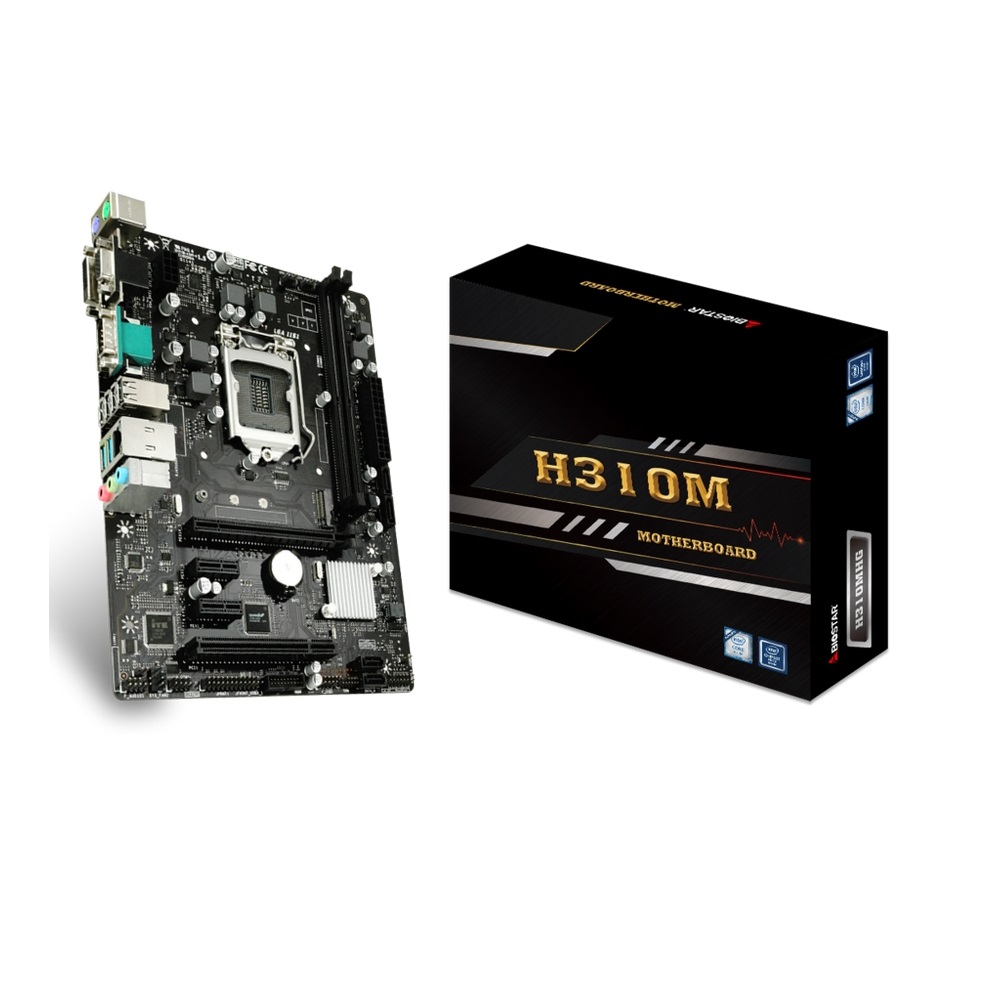

مادربرد بایواستار مدل H310-MHG

9th Gen Intel® Core™ i9 LGA 1151 Processor

9th Gen Intel® Core™ i5 LGA 1151 Processor

9th Gen Intel® Core™ i3 LGA 1151 Processor

8th Gen Intel® Core™ i7 LGA 1151 Processor

8th Gen Intel® Core™ i5 LGA 1151 Processor

8th Gen Intel® Core™ i3 LGA 1151 Processor

8th Gen Intel® Pentium® LGA 1151 Processor

8th Gen Intel® Celeron® LGA 1151 Processor

Maximum CPU TDP (Thermal Design Power) : 95Watt

* Please refer to www.biostar.com.tw for CPU support list.

Support Dual Channel DDR4 2666/ 2400/ 2133/ 1866 MHz

2 x DDR4 DIMM Memory Slot

Max. Supports up to 32GB Memory

Supports DX12

Supports HDCP

4 x SATA III Connectors (6Gb/s)

1 x M.2 (M Key) Connector(10Gb/s) : Supports PCI-E (10Gb/s) & SATA III (6Gb/s)SSD

Realtek ALC887 7.1-Channel HD Audio

Support HD Audio

4 x USB 3.2 Gen1 Port (2 on rear I/Os and 2 via internal header)

6 x USB 2.0 Port (4 on rear I/Os and 2 via internal header)

1 x PCI-E 3.0 x16 Slot

2 x PCI-E 2.0 x1 Slot

1 x PCI Slot

1 x PS/2 Mouse

1 x PS/2 Keyboard

2 x USB 3.2 Gen1 Ports

4 x USB 2.0 Port

1 x COM Port

1 x HDMI Connector

1 x DVI-D Connector

1 x VGA Port

1 x LAN Port

3 x Audio Jacks

1 x USB 3.2 Gen1 Header (each header supports 2 USB 3.2(Gen1) ports)

1 x USB 2.0 Header (each header supports 2 USB 2.0 ports)

4 x SATA III Connector (6Gb/s)

1 x Front Audio Header

1 x Front Panel Header

1 x CPU Fan Connector

2 x System Fan Connector

1 x Chassis Instruction Header

1 x TPM Header

1 x 8-Pin Power Connector

1 x 24-Pin Power Connector

1 x Clear CMOS Header

1 x COM Port Header

1 x Printer Port Header

CPU / System Temperature Monitoring

CPU / System Fan Monitoring

Smart / Manual CPU Fan Control

CPU/DDR Voltage Monitoring

Supports Windows 10

Windows 7

※* BIOSTAR reserves the right to add or remove support for any OS with or without notice.

2 x SATA Cable

1 x I/O Shield

1 x Fully Setup Driver CD

1 x Quick Guide
