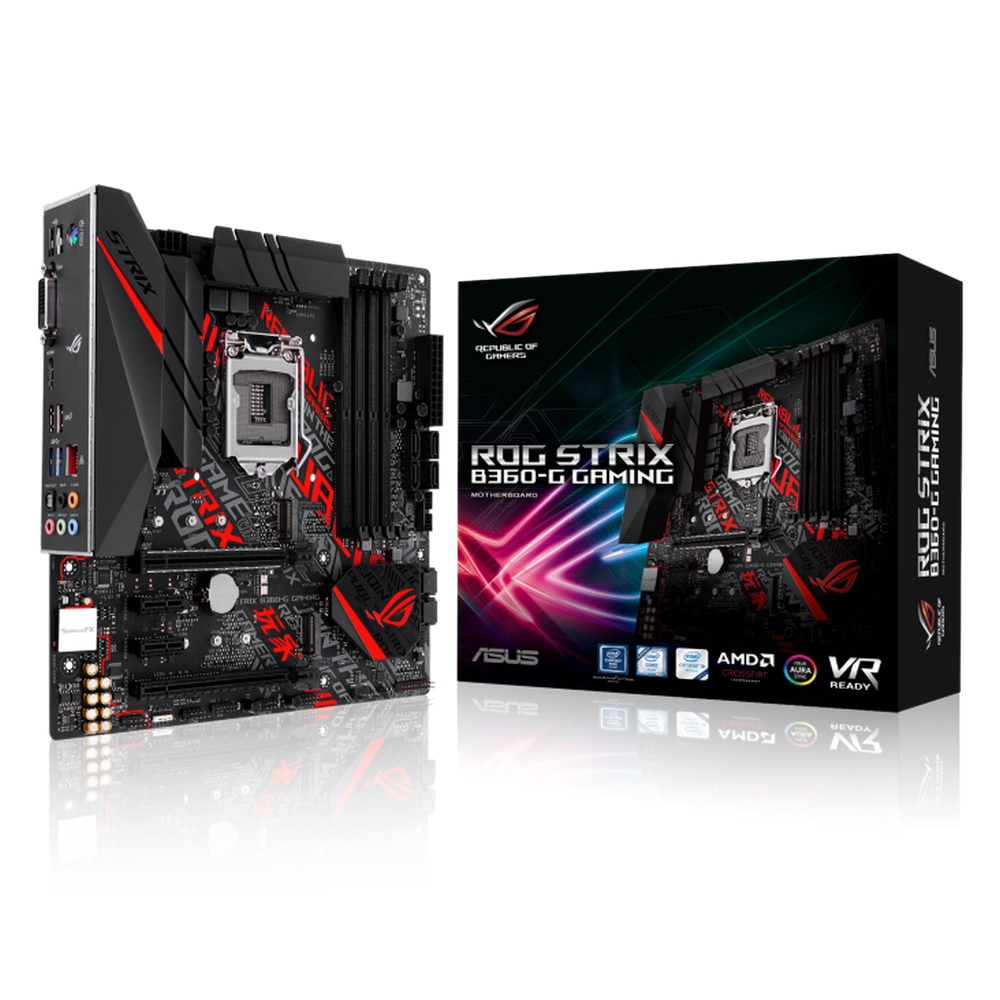

مادربرد ایسوس مدل ROG STRIX B360-G GAMING

CPU

Intel® 9th / 8th Gen Intel^® Core™, Pentium^® Gold and Celeron^® Processors

Supports Intel® Turbo Boost Technology 2.0

* Refer to www.asus.com for CPU support list

Chipset

Build in Intel® B360

Memory

Intel® B360 Chipset

4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.

Graphic

Integrated Graphics Processor- Intel® HD Graphics support

Multi-VGA output support : HDMI/DVI-D ports

– Supports HDMI with max. resolution 4096 x 2160 @ 30Hz

– Supports DVI-D with max. resolution 1920 x 1200 @ 60Hz

Multi-GPU Support

Supports AMD 2-Way CrossFireX Technology

Expansion Slots

1 x PCIe 3.0 x16

1 x PCIe 3.0 x16 (max at x4 mode)

2 x PCIe 3.0/2.0 x1

Storage

1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*

1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*¹

Intel® B360 Chipset :

6 x SATA 6Gb/s port(s)

Intel® Optane™ Memory Ready *

LAN

ROG GameFirst IV

Intel® I219V

Anti-surge LANGuard

Audio

ROG SupremeFX8-Channel High Definition Audio CODEC S1220A

– Dual OP Amplifiers

– Impedance sense for front and rear headphone outputs

– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

– High quality120dB(Line-out at rear)113dBSNR recording input

Audio Feature :

– SupremeFX Shielding™ Technology

– Optical S/PDIF out port(s) at back panel

– LED-lit Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path

– Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

– Sonic Radar III

– Sonic Studio III + Sonic Studio Link

USB Ports

4 x USB 3.1 Gen 1 port(s)

Intel® B360 Chipset :

2 x USB 3.1 Gen 2 port(s)

6 x USB 2.0 port(s)

ROG Exclusive Features

ROG RAMCache II

ROG CloneDrive

GameFirst IV

Pre-mounted I/O Shield

Overwolf

Special Features

Gamer´s Guardian:

– ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports

– DRAM Overcurrent Protection

– Stainless Steel Back I/O

– Highly Durable components

– Digi+ VRM

– SafeSlot

AURA :

– Aura Lighting Control

– Aura RGB Strip Headers

ASUS Exclusive Features :

– GPU Boost

– AI Suite 3

– ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface

ASUS Quiet Thermal Solution :

– ASUS Fan Xpert 4 Core

ASUS EZ DIY :

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS MyLogo

ASUS Q-Design :

– ASUS Q-Slot

– ASUS Q-DIMM

Back I/O Ports

2 x USB 3.1 Gen 2

2 x USB 3.1 Gen 1 (blue)

1 x PS/2 keyboard/mouse combo port(s)

1 x DVI

1 x HDMI

1 x Optical S/PDIF out

5 x Gold-plated audio jacks

2 x USB 3.1 Gen 2 (red)Type-A

Anti-surge LAN (RJ45) port

Internal I/O Ports

1 x M.2 Socket 2 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)

1 x AAFP connector

1 x Aura RGB Strip Header

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)

1 x TPM header

1 x COM port(s) connector(s)

6 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s)

2 x Chassis Fan connector(s)

1 x AIO_PUMP connector

1 x 24-pin EATX Power connector(s)

1 x 8-pin EATX 12V Power connectors

1 x Front panel connector(s)

1 x Clear CMOS jumper(s)

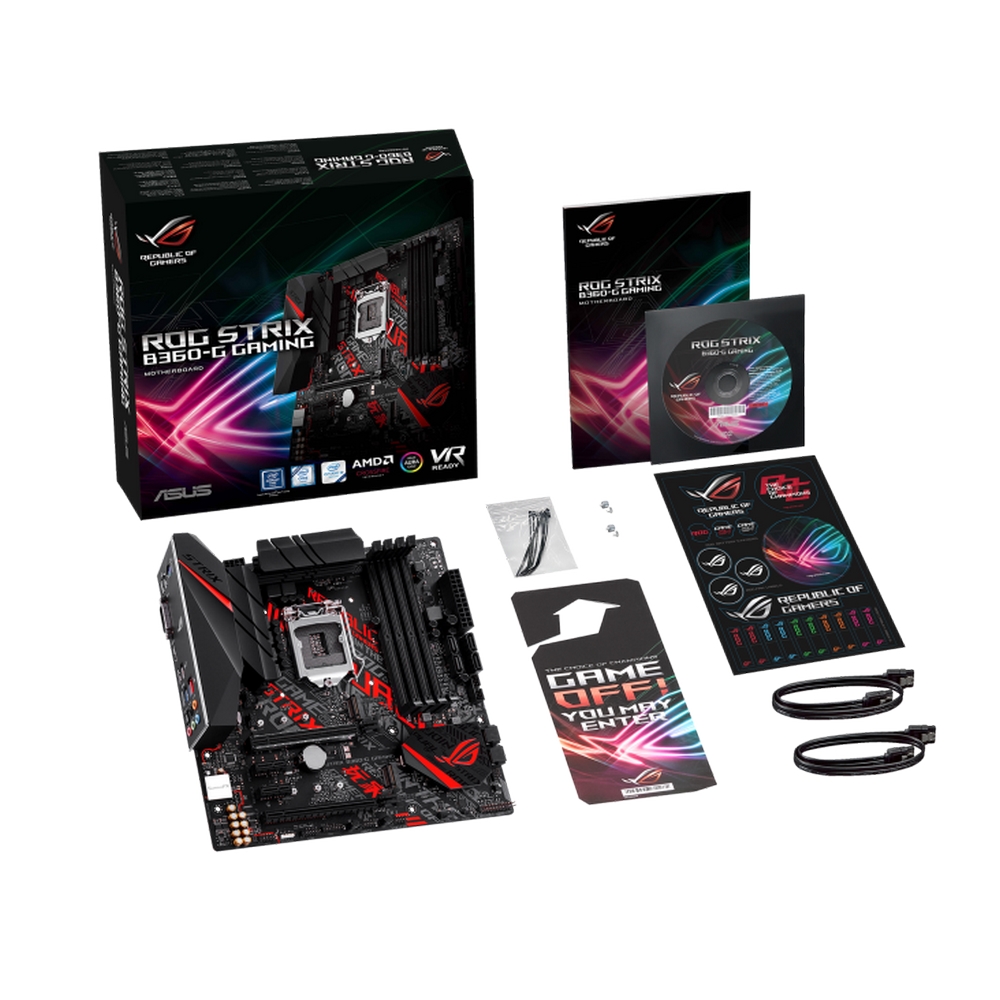

Accessories

2 x SATA 6Gb/s cable(s)

User´s manual

2 x SATA 6Gb/s cable(s)

1 x M.2 Screw Package

1 x Supporting DVD

1 x Strix door hanger

1 x CABLE TIE BLACK

1 x ROG Strix stickers

BIOS

1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information, ASUS Secure Erase, ASUS User Profile, F4 AURA ON/OFF, F9 Search

Manageability

WOL, WOR, PXE

Operating System

Windows® 10 64-bit

Form Factor

mATX Form Factor

9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Note

*1 The M.2_1 socket shares bandwidth with SATA6G_2 port when using M.2 SATA mode device. Adjust BIOS settings to use X2 mode (PCIE only).
